Welding Electrodes

from £17.40

Welding Electrodes

Welding Electrodes

from £17.40

Size

Product Details

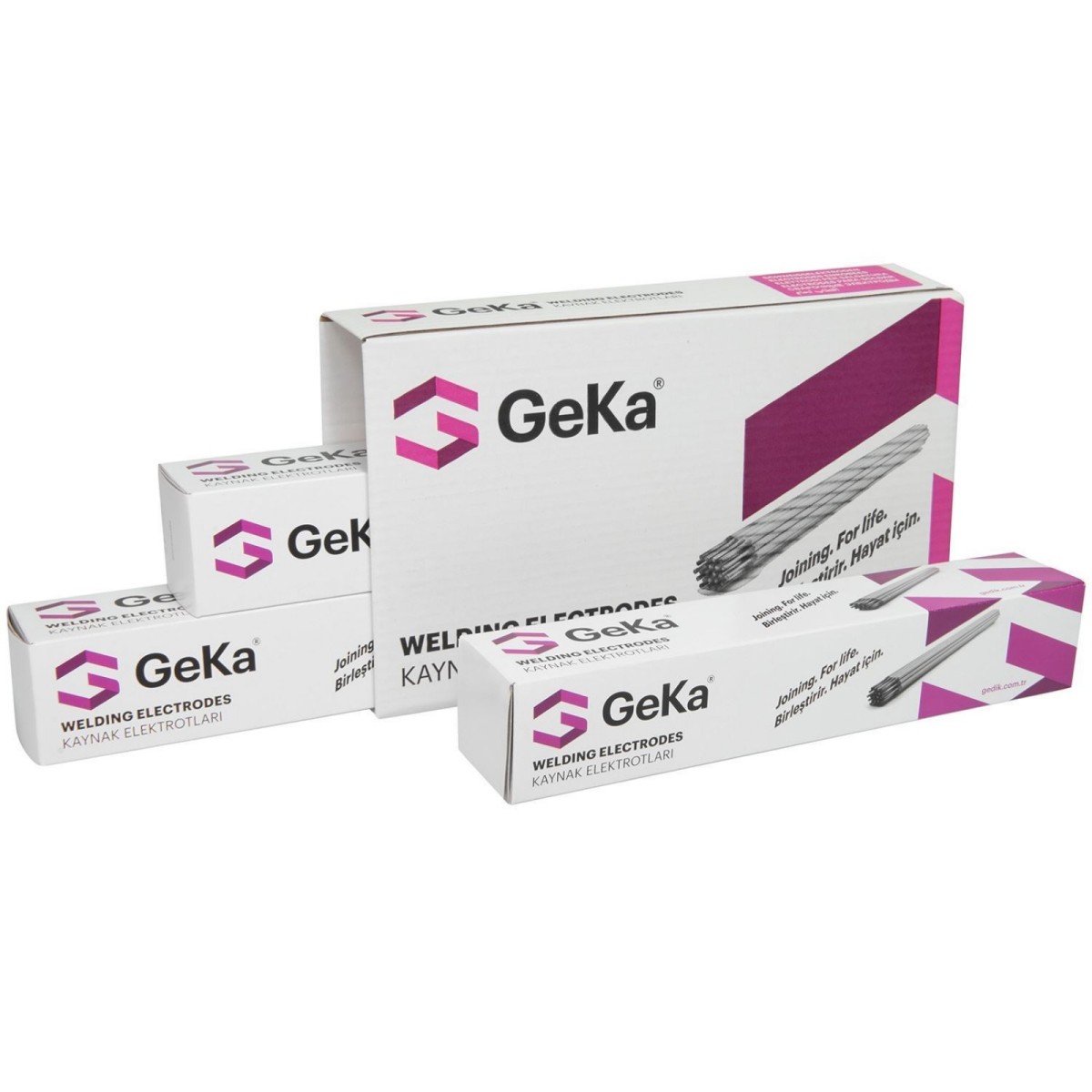

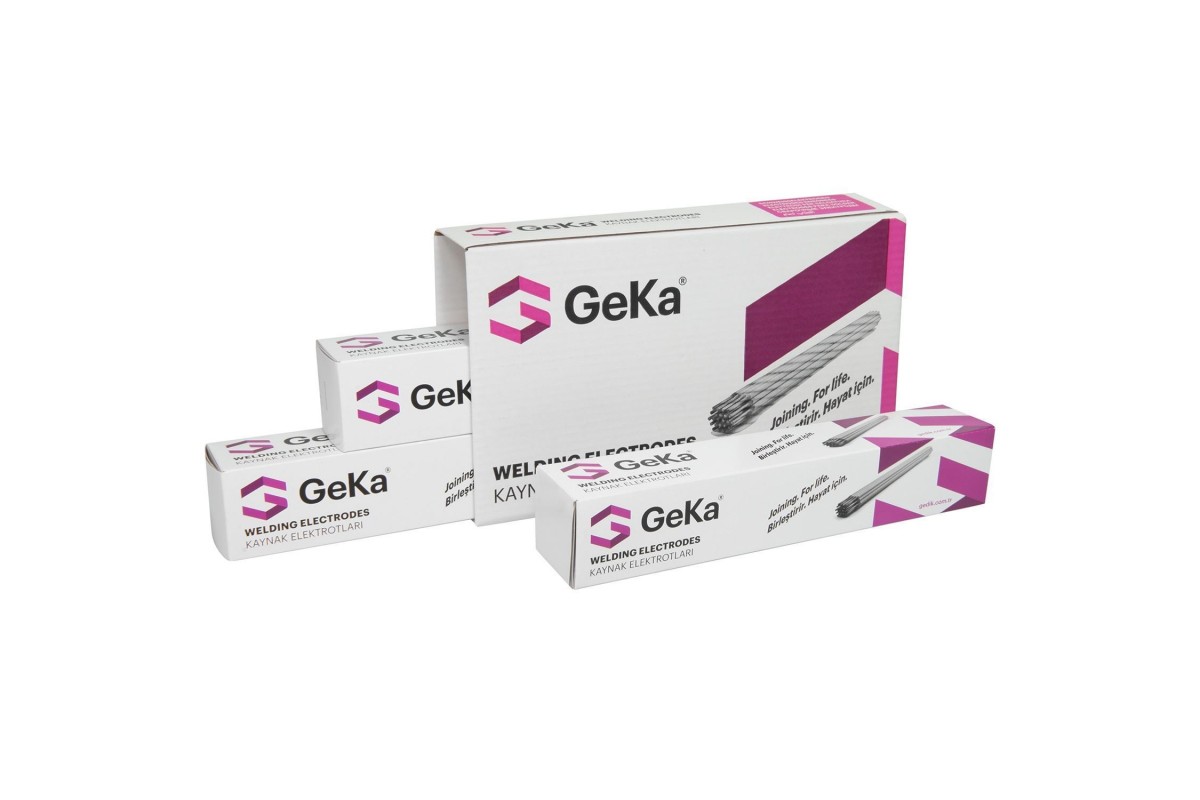

Brand: GeKa Welding Consumables

LOTUS is a premium 6013 medium coated all positional electrode suitable for welding in vertical down. Superior performance that has exceptional arc stability, easy start and restart properties with self-removing slag.

Features and Applications:

Electrode coating of medium thickness

Electrode coating of flexible type, providing electrode bendability

Usability in welding of materials in hard to reach places

Suitable for welding in vertical-down welding position


Typical Base Material Grades:

S 235JR, S275JR, S235J2G3-S355J2G3, P235 GH, P265GH, P255NH, P235T1-P355T1, P235T2-P355T2, P235G1TH, P255G1TH, L210-L360NB, S235JRS1-S235J2S1, S235JRS2-S235J2S2


Standards:Current Type:
EN ISO 2560-A - E 42 0 RC 11                         D.C. (-) (+) / A.C.
AWS A5.1 - E6013


Chemical Composition of Weld Metal % (Typical):

CSiMn
0.07   0.30   0.40

Mechanical Properties:

Yield Strength
(N/mm2)
Tensile Strength
(N/mm2)
Impact Strength
(ISO-V/0ºC)
Elongation
(Lo=5do)(%)
min. 420510 - 610min. 47 Jmin. 22


Welding Positions:




Liability:
 Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
